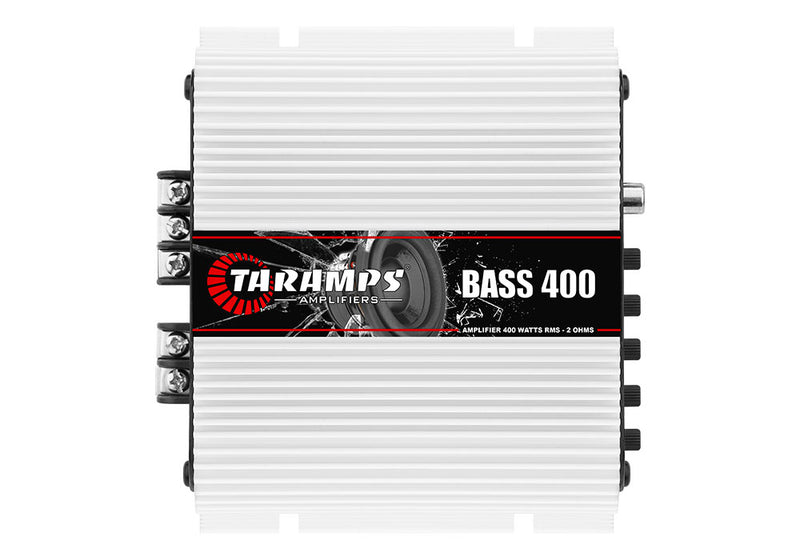

The BASS 400 amplifier by Taramps has been carefully designed with the highest technology, efficiency and performance for car audio systems. Designed mainly for sub and bass, that is, frequency responses in the range of 8Hz to 250Hz. It has a maximum power of 400 Watts in 1 channel of 2 ohms, with customized adjustments according to the trunk size and frequency appeal of each vehicle, through the BASS BOOST and the option of choosing the central frequency. The BASS 400 can offer much more displacement control, through the SUBSONIC FILTER, volume control and LOW PASS, to make your bass sound just perfect.
Technical Information:
| Operation class | Class D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 13.8 VDC - 2 Ohms: 400 Watts RMS @ 13.8 VDC - 4 Ohms: 214 Watts RMS |
| Input Sensitivity | 320mV (RCA) - 6V (FIO) - LEVEL 100% |
| Signal to Noise Ratio | > 90dB |
| Frequency Response | 8Hz ~ 255Hz (-3dB) |
| Crossover high pass (HPF) | 8Hz ~ 30Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 55Hz ~ 250Hz (-12dB/8ª) Variable |
| bass boost | Parametric, Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +12dB |
| Efficiency | 82% |
| Input Impedance | 10K Ohms (RCA) / 1K Ohms (WIRE) |
| Output Impedance | 2 Ohms |
| protection system | Thermal Protection and Output Short Circuit |
| Min. Supply Voltage | 8 VDC |
| Maximum Power Supply Voltage | 16 VDC |
| Consumption at rest | 0.5A |
| Maximum music consumption | @13.8 VDC - 17.5A |
| Maximum consumption in sinusoidal signal | 35A |
| Dimensions (WxHxD) | 5.28" x 1.57" x 5.43" (134 x 40 x 138mm) |
| Weight | 1.25lb (0,57kg) |
| EAN | 7898556843478 |
