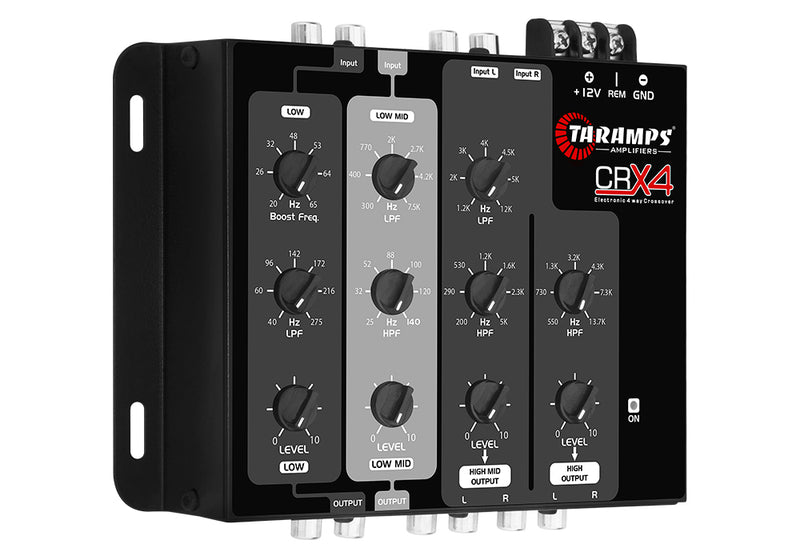

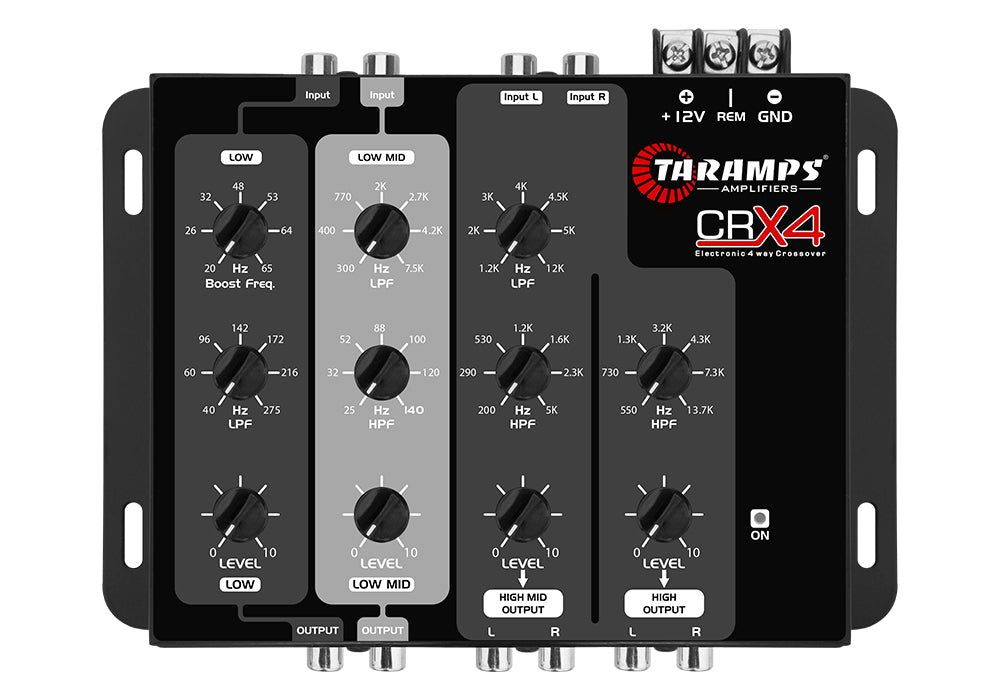

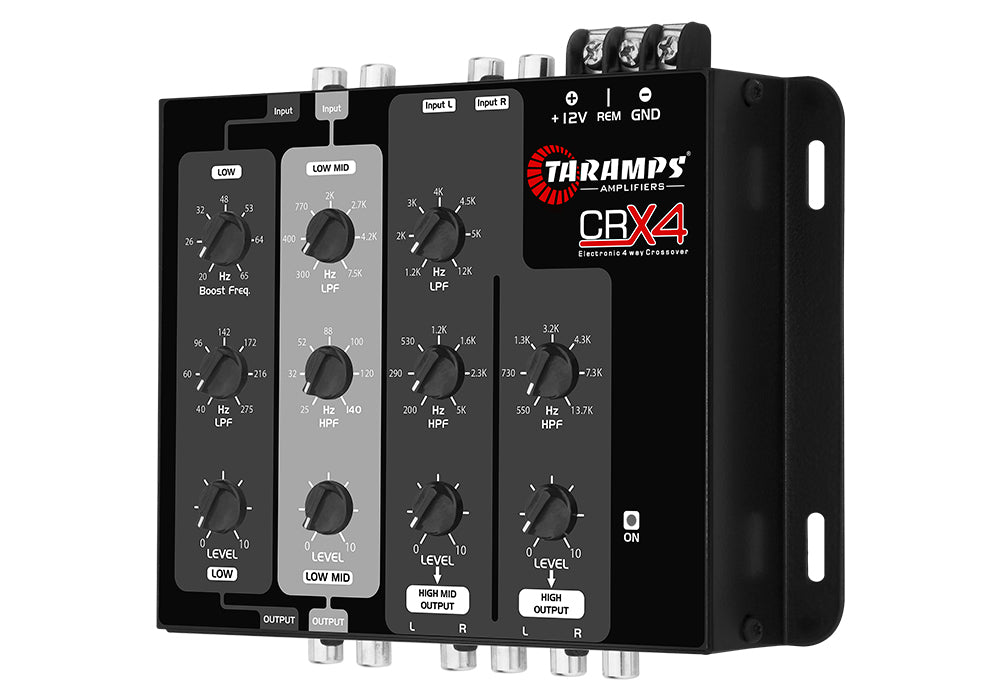

With the purpose to implement quality, technology and confiability, Taramps presents the CRX4 crossover for automotive sound systems. With high quality raw material, it’s very versatile, having 4-ways with variable settings of the HIGH PASS and LOW PASS filters, and also output level control in each way, in addition to adjustable BASS-BOOST to better divide the frequencies into bass, midbass and high. Practicality and high performance for your sound system that only Taramps can offer, welcome to our sound world.
Technical Information:
| Output impedance | 27k ohms |
|---|---|
| Maximum input level | 8V RMS |
| Maximum output level | 8V RMS |
| Crosstalk (separation between channels) | >80dB |
| Power Supply Voltage | 10 ~15.5VDC |
| protection system | Against polarity reversal |
| Number of copies | 4 |
| Via Low | Frequency cut / Variable (LPF): 40Hz ~275Hz (-12dB/8th) |
| bass boost | Variable Central Frequency: 20 ~65Hz (Fixed Gain 6dB) |
| Via Low Mid | Minimum frequency of HPF cut / Variable: 25Hz ~ 140Hz (-12dB/8th) Maximum frequency of LPF cut / Variable: 300Hz ~7.5Hz (-12dB/8th) |
| Via High Mid | Minimum frequency of HPF cut / Variable: 200Hz ~5KHz (-12dB/8th) Maximum frequency of LPF cut / Variable: 1.2KHz ~ 12KHz(-12dB/8th) |
| Via High | Frequency cut / Variable: 550Hz ~13.7KHz (-12dB/8th) |
| Dimensions (WxHxD) | 7.48" x 1.57" x 5.71"(190 x 40 x 145 mm) |
| Weight | 1.23 lbs (0.560 kg) |
| EAN | 7898556840118 |
| Additional Information | |
| Power supply: With switched-mode DC-DC converter Voltage Range: 10 ~ 15.5VDC Nominal Consumption (12.6V): 0.38A |
|
Aditional Information:
Power supply: With switched-mode DC-DC converterVoltage Range: 10 ~ 15.5VDC
Nominal Consumption (12.6V): 0.38A
