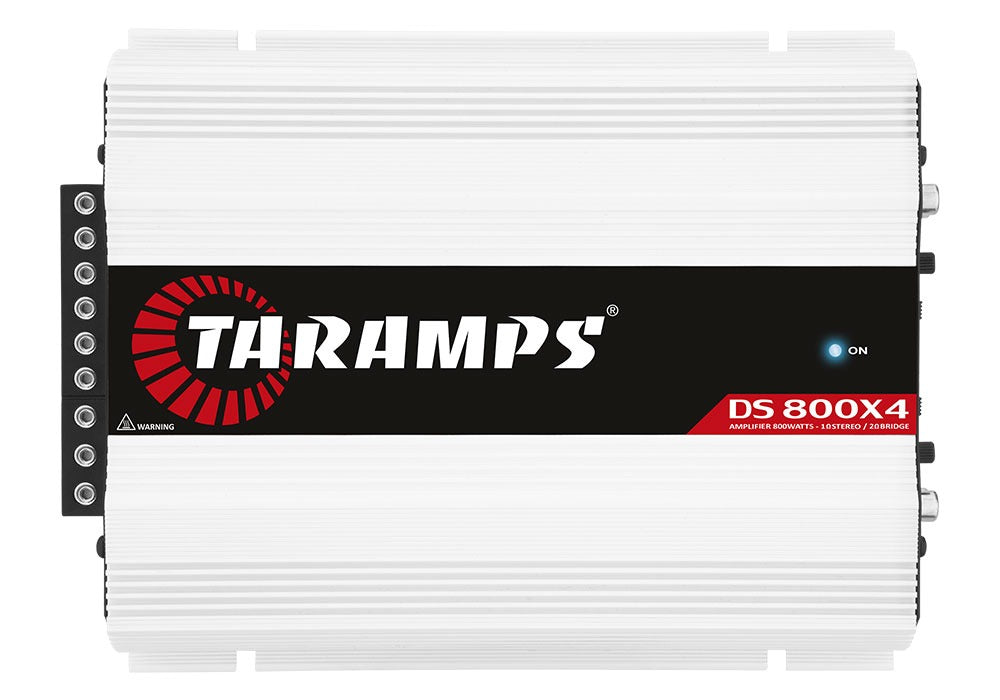

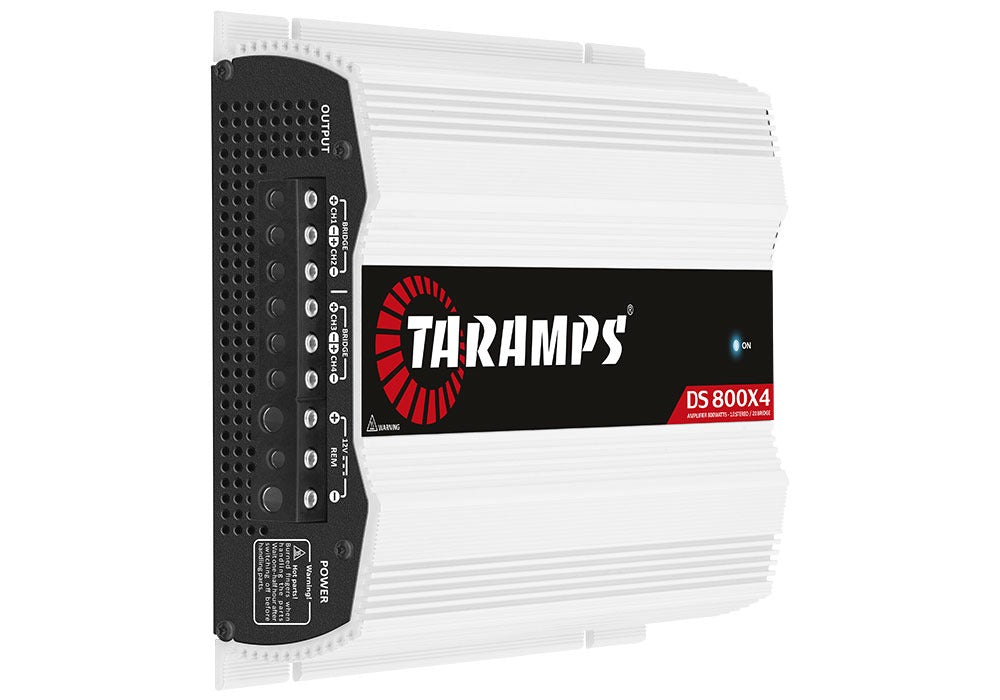

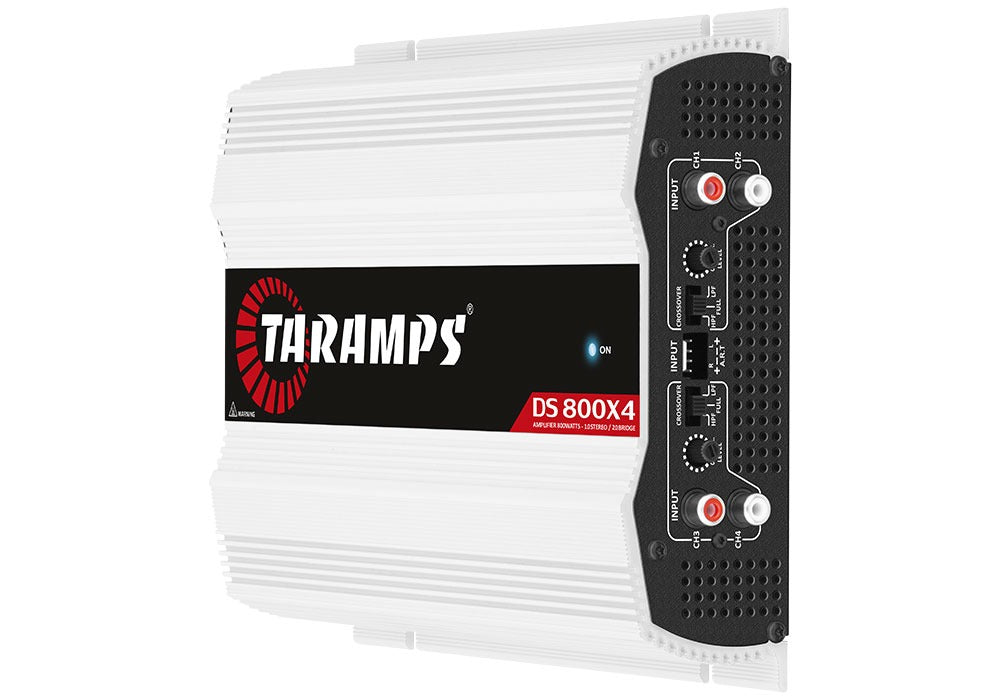

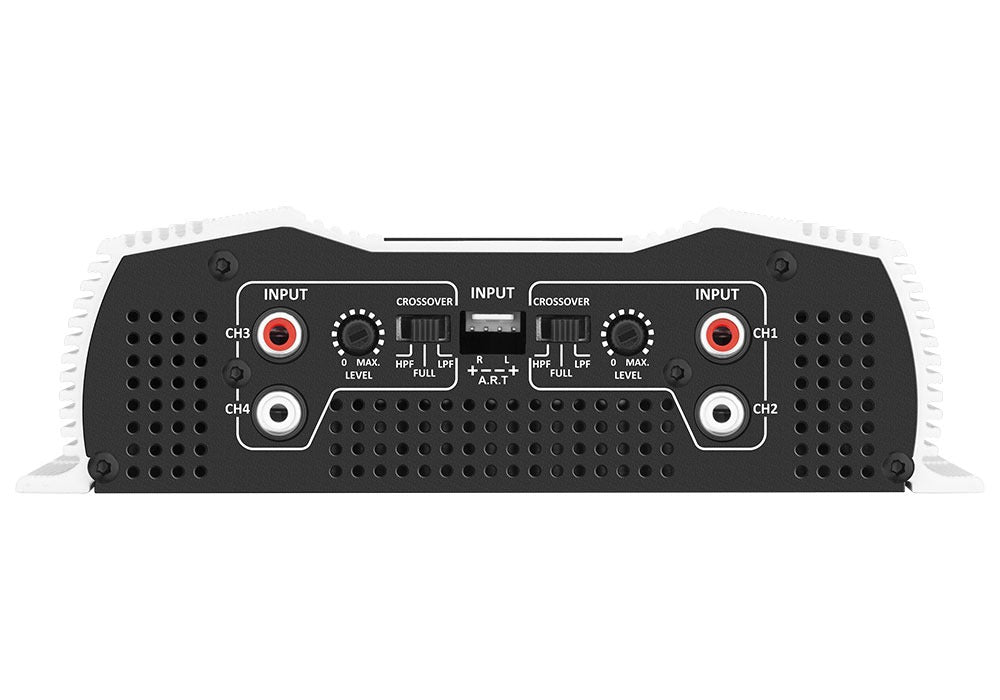

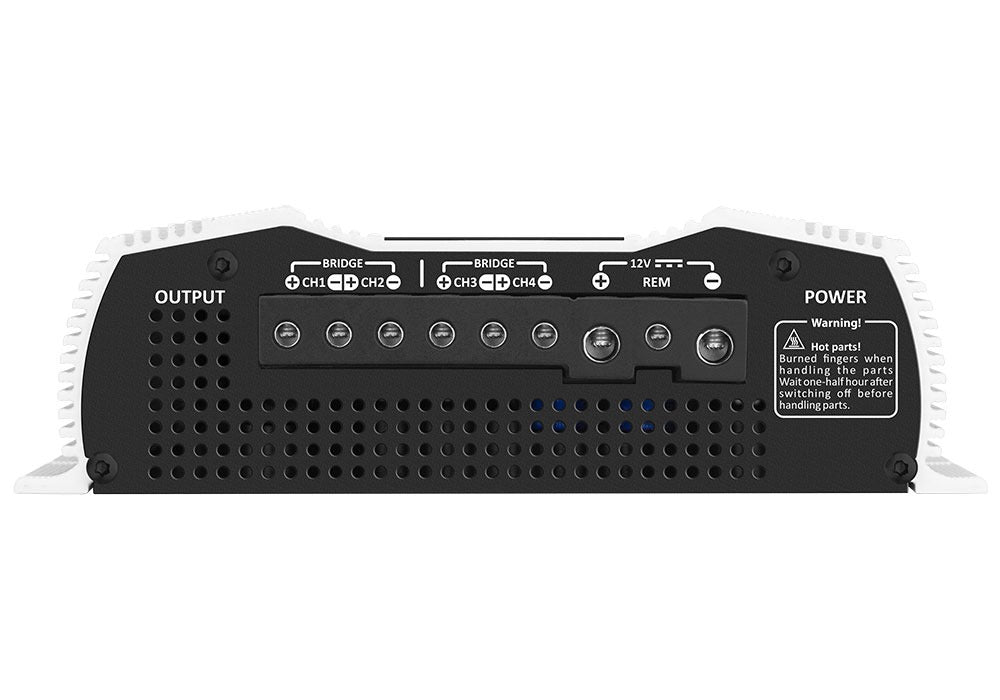

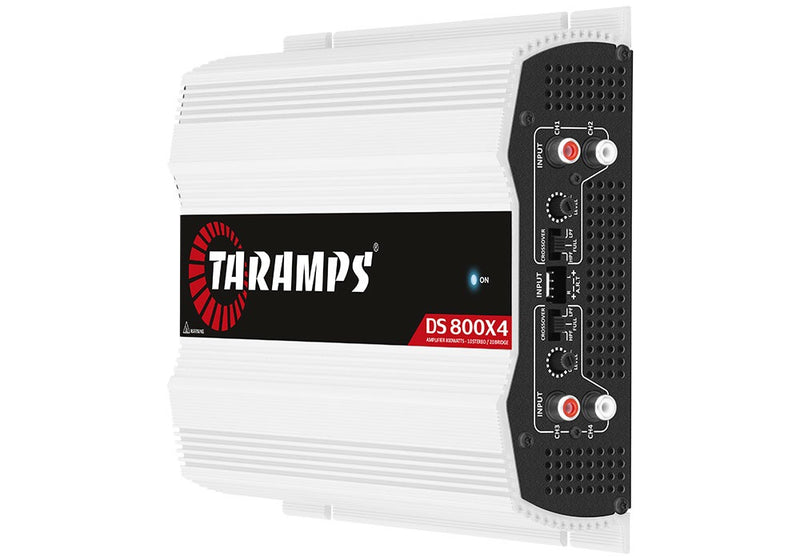

The DS 800×4 is synonymous with multichannel amplifier. It has 4 channels of 200 Watts RMS, with a maximum power of 800 Watts RMS, at 1 ohm and is compatible with any frequency, that is to say, it is a FULL RANGE amp. Versatility, efficiency and quality in a single product.
Technical Information:
| Operation class | D |
|---|---|
| Number of Channels | 04 |
| Maximum power | @ 12.6 VDC - 1 OHM: 800W RMS (4 x 200W RMS) @ 12.6 VDC - 2 OHMS: 544W RMS (4 x 136W RMS) 2 bridgeable channels - 1 OHM: 800WRMS (2 x 400WRMS) |
| Input Sensitivity | 250mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 10Hz to 36KHz(-3dB) |
| Crossover high pass (HPF) | 90Hz (-12dB/8th) Fixed |
| Crossover low pass (LPF) | 90Hz (-12dB/8th) Fixed |
| Input Impedance | 18K Ohms |
| Output Impedance | 1 Ohm |
| protection system | Output overload |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1,0A |
| Maximum music consumption | @12.6VDC: 51A |
| Maximum consumption in sinusoidal signal | 102A |
| Dimensions (WxHxD) | 7.17" x 2.05" x 8.94" (173 x 52 x 227mm) |
| Weight | 3.52lb (1,43kg) |
| EAN | 7898556844826 |
