Description
Description

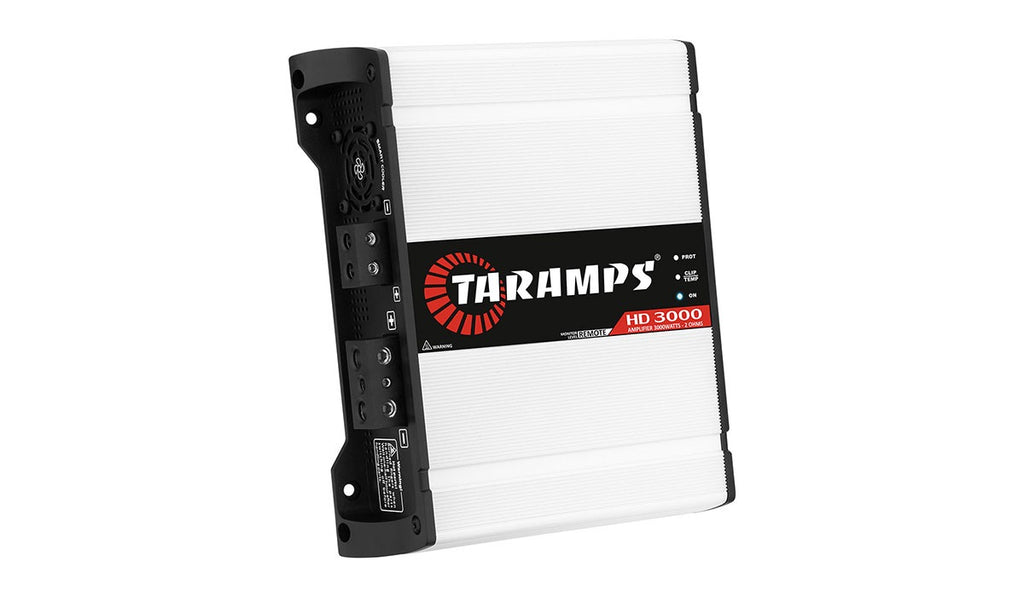

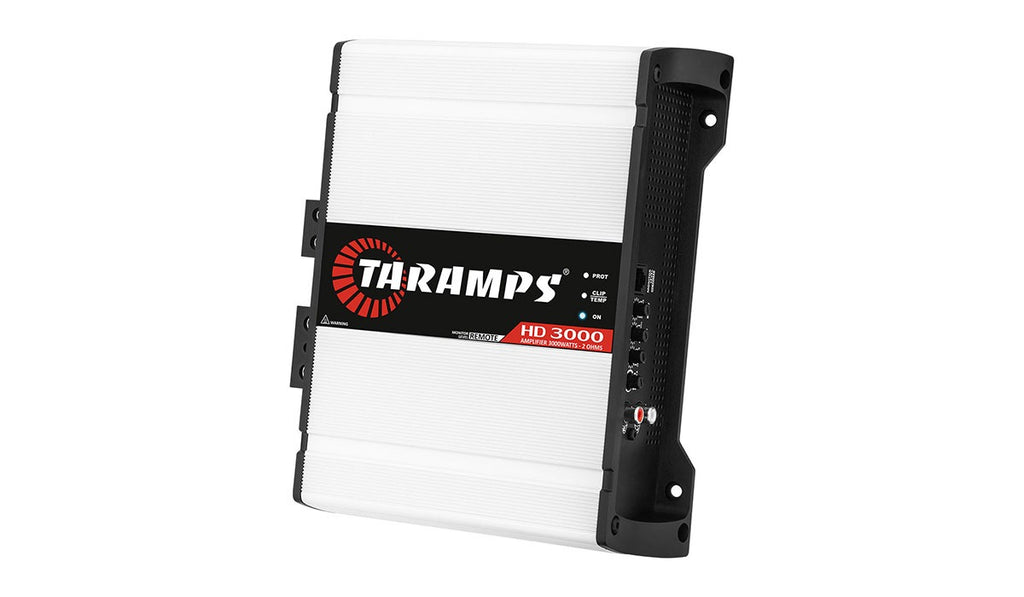

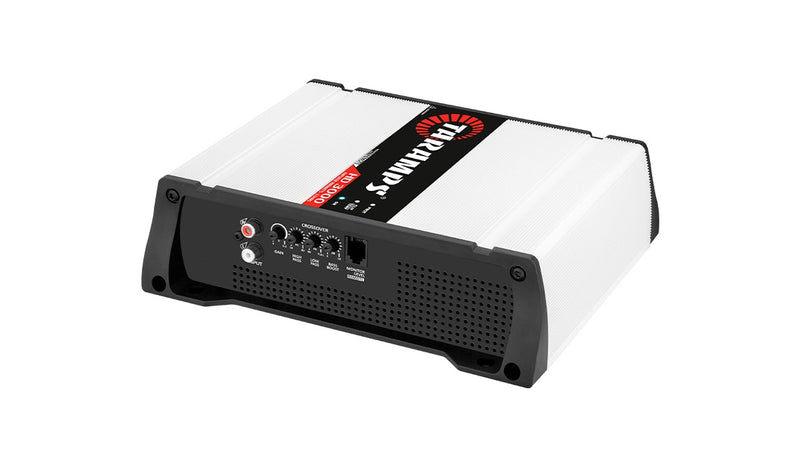

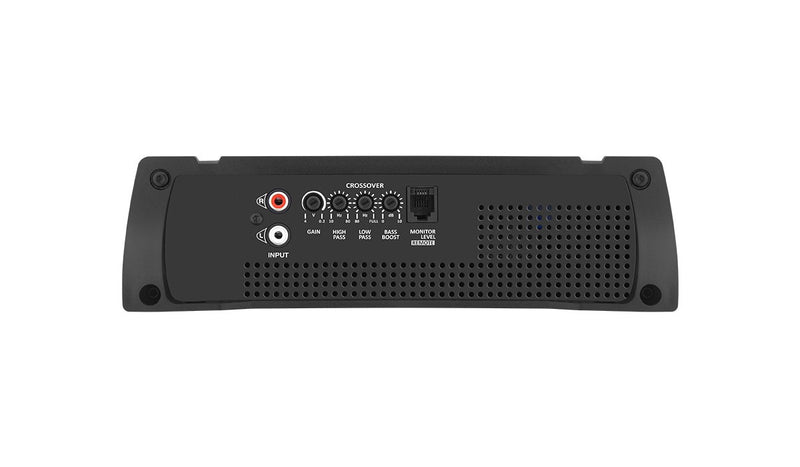

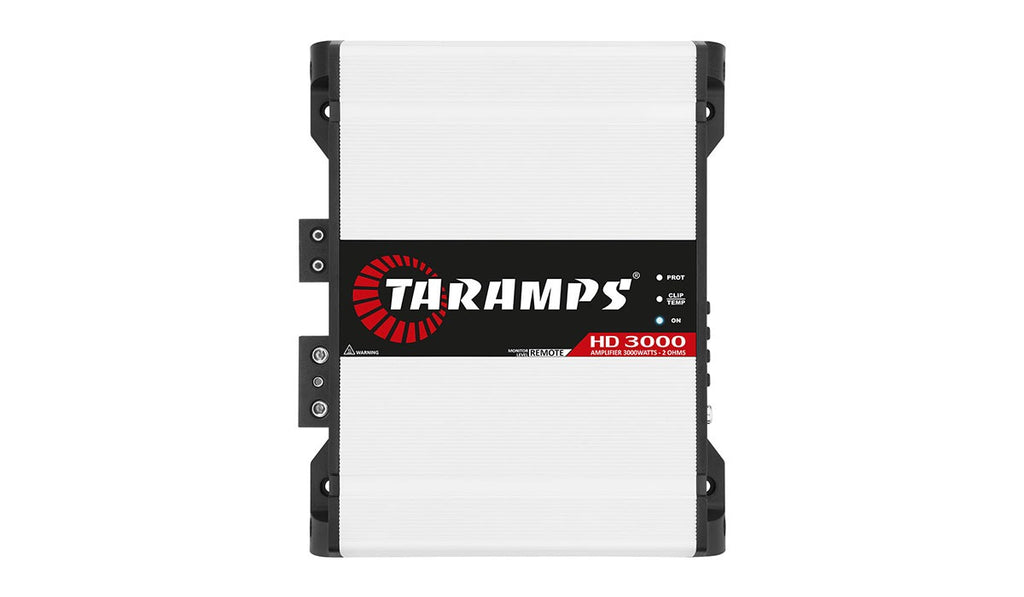

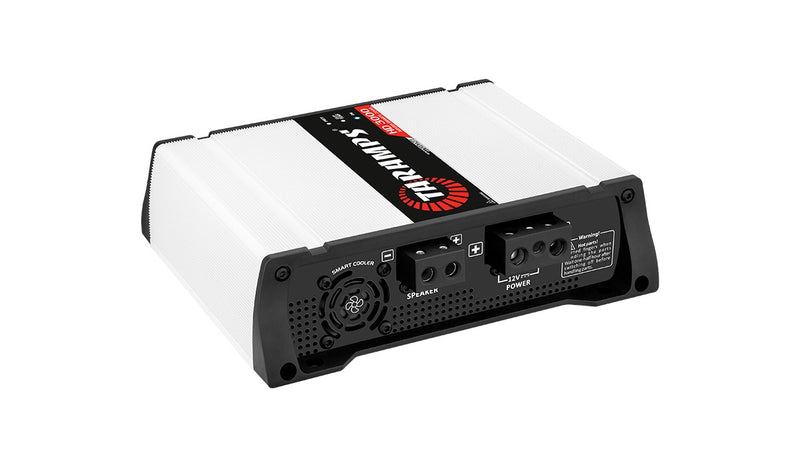

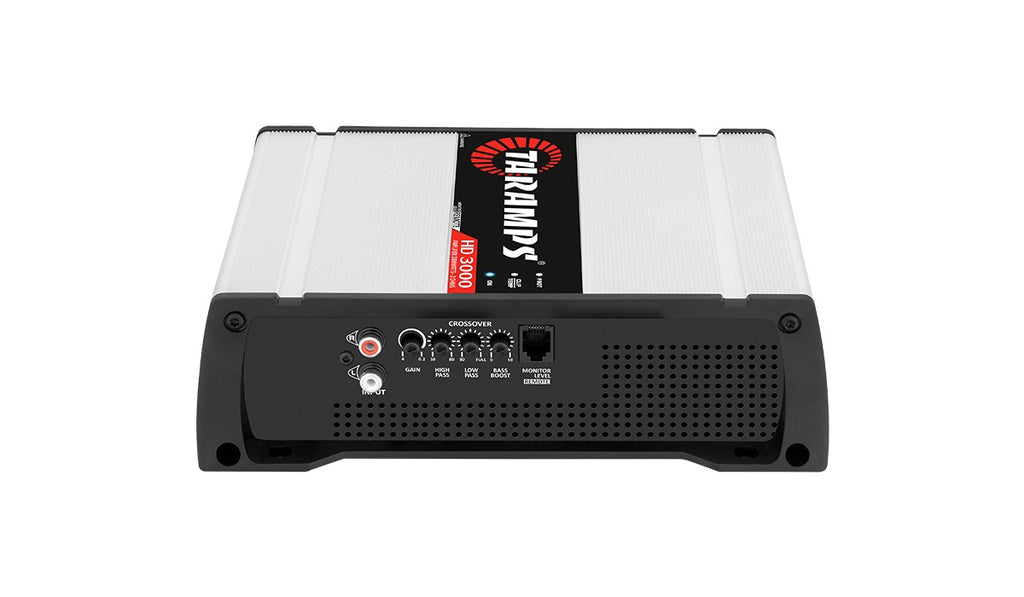

With a maximum power of 3000 Watts RMS, the HD3000 is mono; 2-ohms and has 1 channel. Compatible with all types of speakers, drivers and tweeters.
* This product comes with an M1 LED Monitor
Technical Information:
| Operation class | Clase D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @12.6 VDC 2 Ohms: 3000 Watts RMS @12.6 VDC 4 Ohms: 2025 Watts RMS @12.6 VDC 8 Ohms: 1140 Watts RMS |
| Input Sensitivity | 230mV |
| Signal to Noise Ratio | 89dB |
| Frequency Response | 10Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| bass boost | 0 ~ 10.5dB (50Hz) |
| Thermal Management | Smart Cooler (temperature-driven or audio cooler, with 3 speeds) |
| Efficiency | 83% |
| Input Impedance | 18K Ohms |
| Output Impedance | 2 Ohms |
| protection system | Output Short circuit / High or Low Supply Voltage / Thermal Protection |
| Min. Supply Voltage | 9 VDC |
| Maximum Power Supply Voltage | 16 VDC |
| Consumption at rest | 1.7A |
| Maximum music consumption | @12.6VDC: 143.5A |
| Maximum consumption in sinusoidal signal | @12.6VDC (1KHz): 287A |
| Dimensions (WxHxD) | 9" x 2.56" x 7.32" (229 x 65 x 186mm) |
| Weight | 2.0Kg |
| EAN | 7898556840880 |
