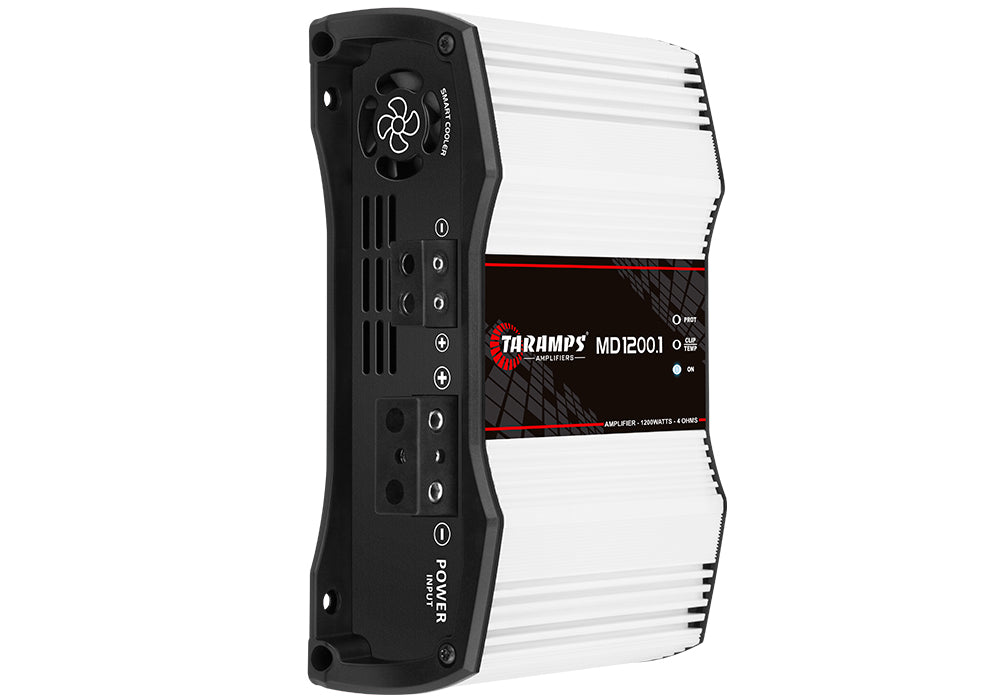

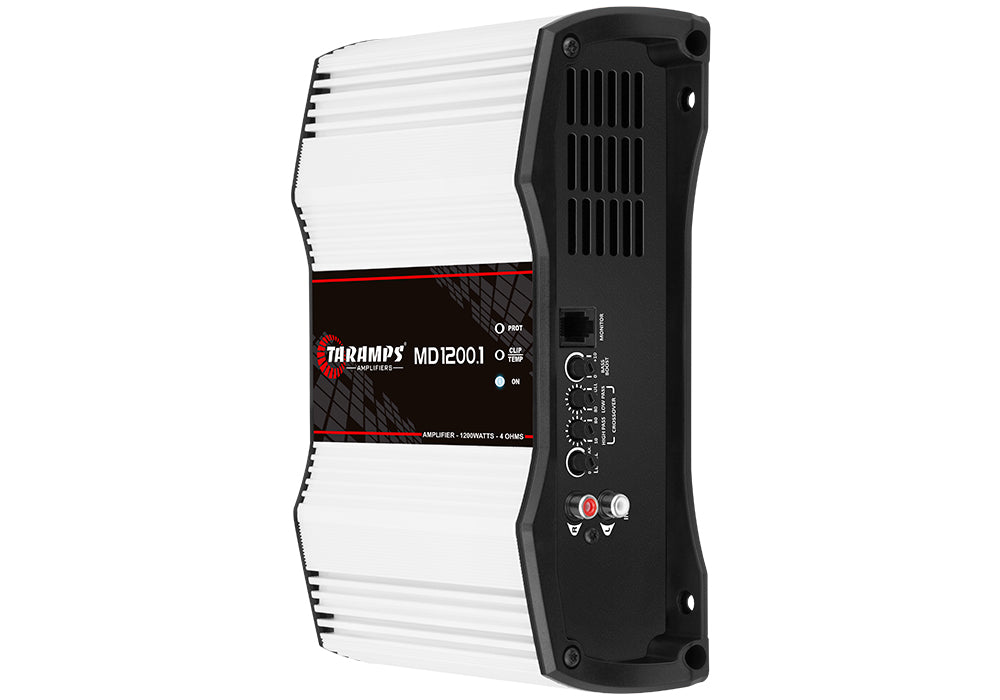

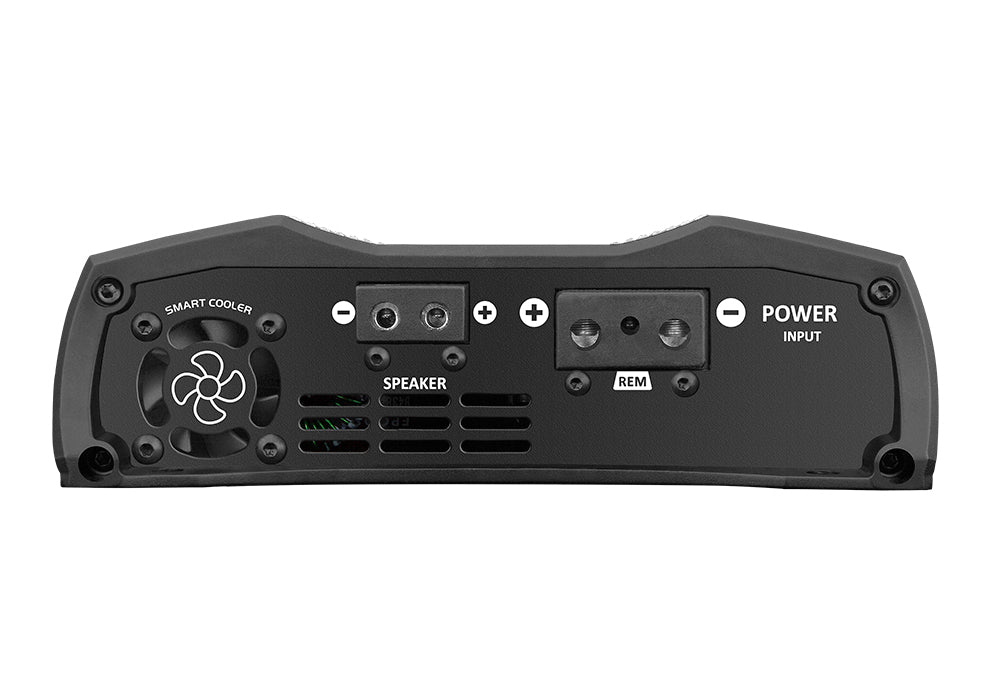

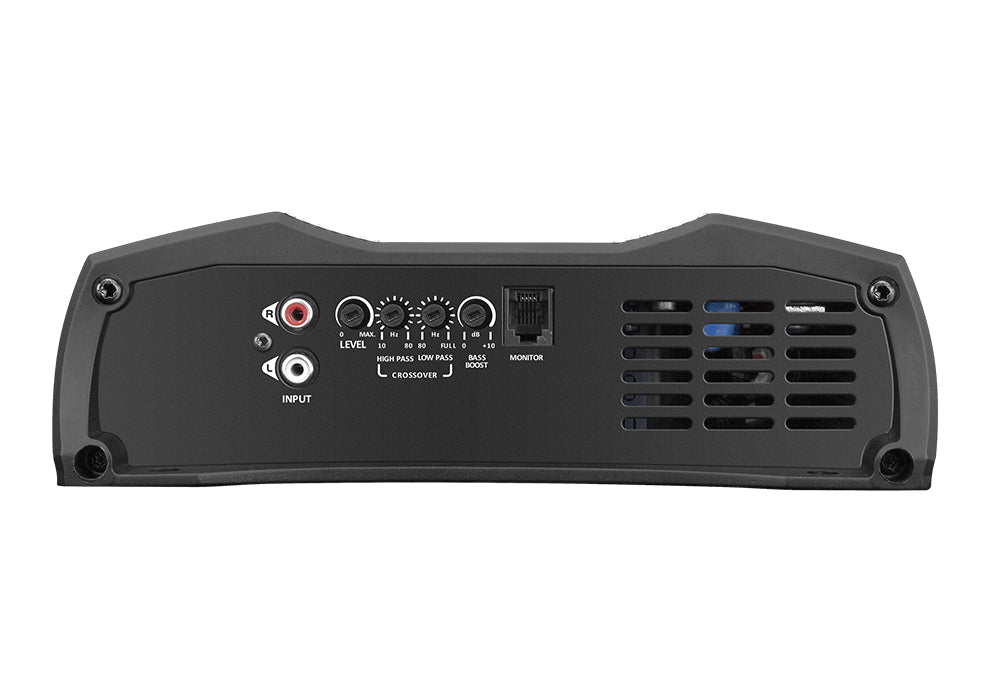

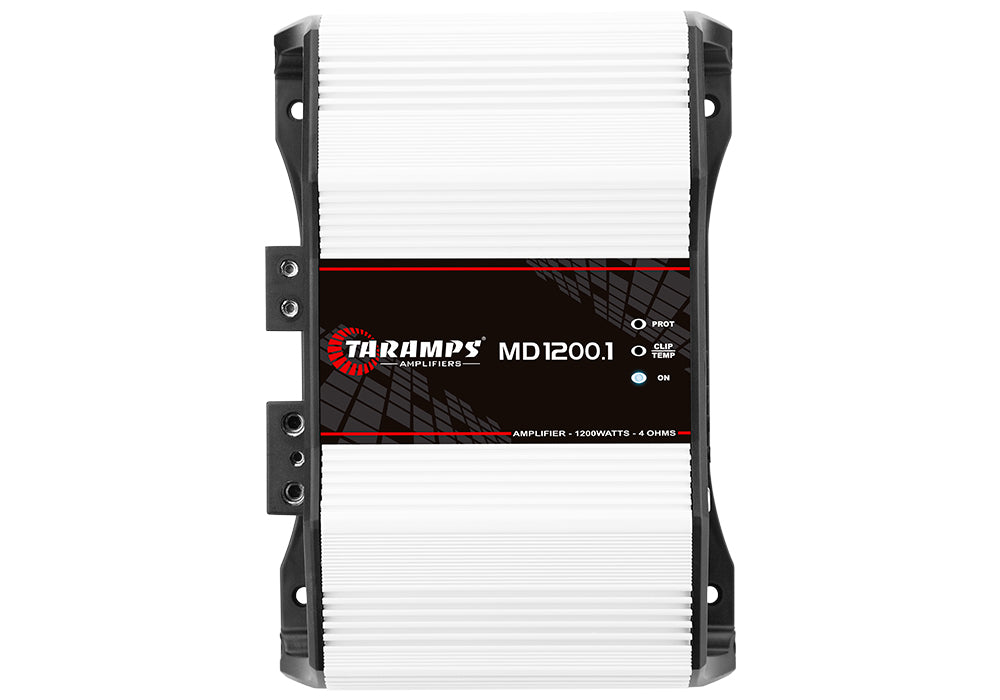

The Taramps MD 1200.1 in the 4-ohms version has been carefully designed with the highest technology, offering high efficiency and performance for various types of car audio systems. This amplifier covers the whole frequency range, that is, it is a FULL RANGE module. It is classified as mono and has a channel with a maximum power of 1200-Watts RMS. Welcome to Taramps audio world.
Technical Information:
| Operation class | D |
|---|---|
| Number of Channels | 01 |
| Maximum power | @ 12.6 VDC - 4 OHMS: 1200W RMS @ 12.6 VDC - 8 OHMS: 855W RMS |
| Input Sensitivity | 220mV |
| Signal to Noise Ratio | >88dB |
| Frequency Response | 10Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 10Hz ~80Hz (-12dB/8ª) Variable |
| Crossover low pass (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| bass boost | 0 ~ 10.5dB (50Hz) |
| Thermal Management | Smart Cooler (fan controlled by temperature or audio, with 3 speeds) |
| Efficiency | 82% |
| Input Impedance | 10K Ohms |
| Output Impedance | 4 Ohms |
| protection system | Output short circuit / High or Low supply voltage / Thermal protection |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 1.8A |
| Maximum music consumption | 58A |
| Maximum consumption in sinusoidal signal | 116A |
| Dimensions (WxHxD) | 8.98" x 2.76" x 6.22" (228 x 70 x 158mm) |
| Weight | 3.96lb (1,80kg) |
| EAN | 7898556844819 |
