Description
Description

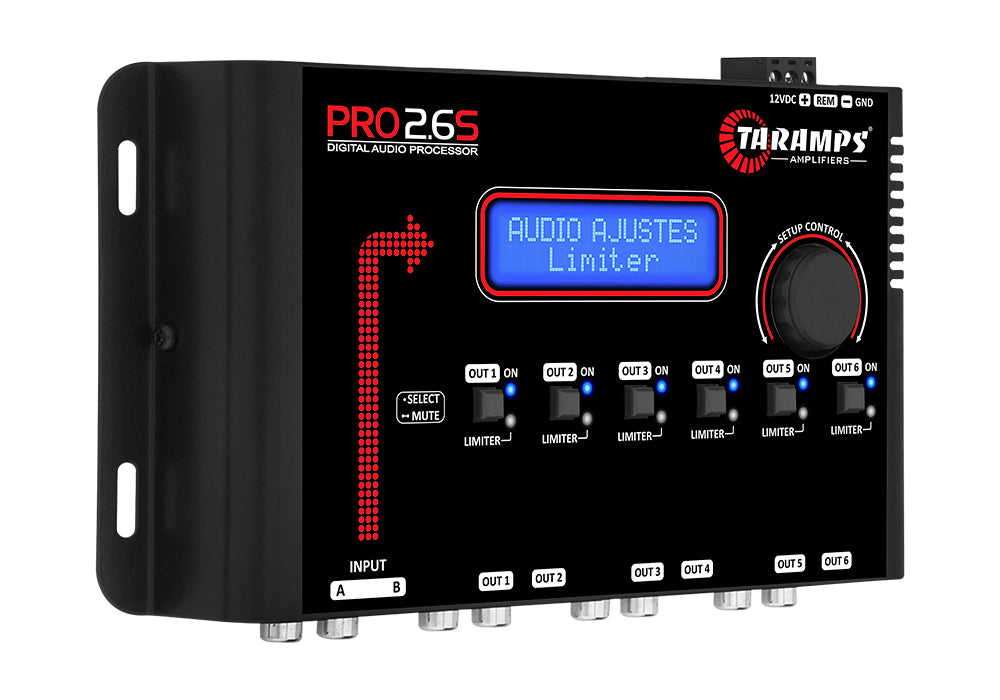

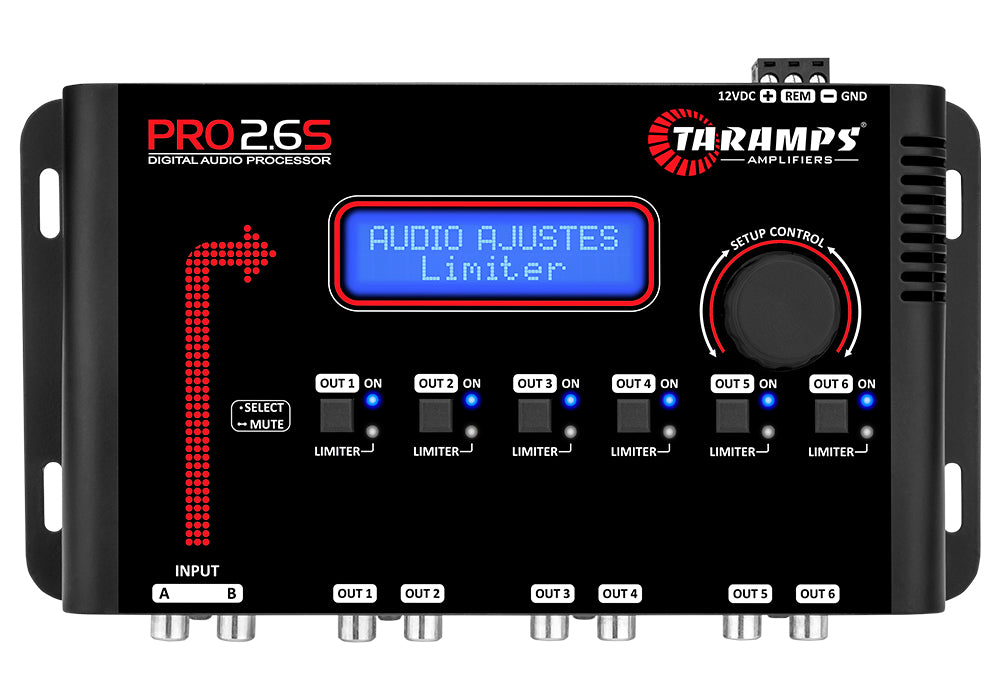

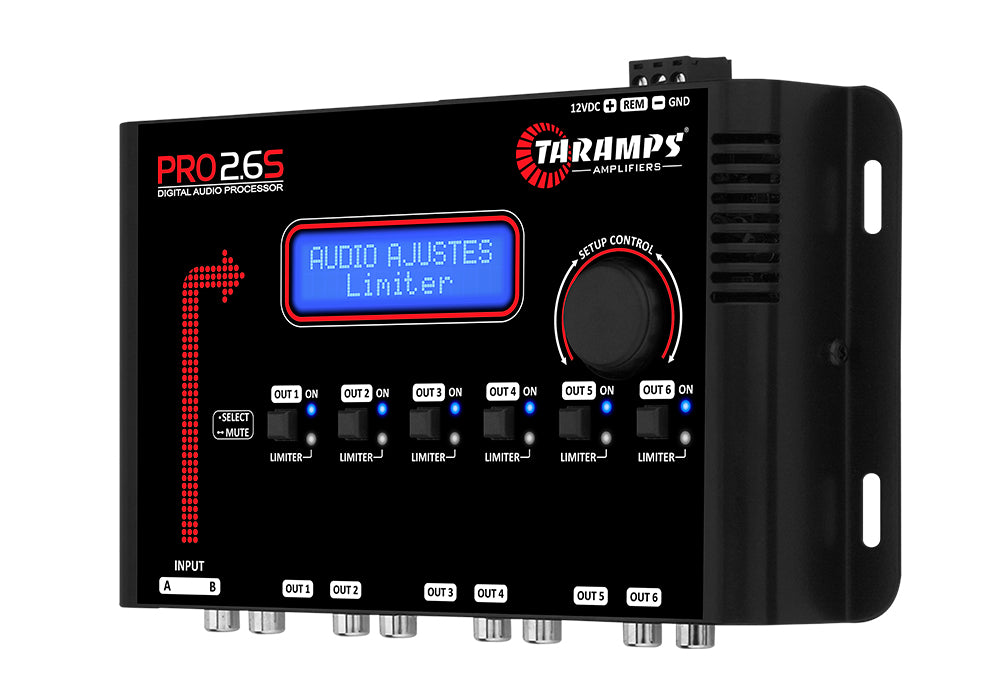

Always dedicated to improving your experience with your car audio system, Taramps innovated again by producing the PRO2.6S audio processor. DSP, 2 independent inputs and 6 outputs, it has features such as routing, crossover filters, delay adjustment, alignment, phase inversion, adjustable limiter, parametric equalizer on outputs, mirroring, mute, sinusoidal wave generator and memory for settings . Taramps, always working to make your audio system more complete and easier to handle.
Technical Information:
| Input impedance | 18k ohms |
|---|---|
| Output impedance | 47 ohms |
| Maximum input level | 6Vpp (2.1V RMS) |
| Maximum output level | 10.2Vpp (3.6V RMS) |
| Frequency response | 10 Hz ~ 20 kHz |
| Signal to Noise Ratio | >90dB |
| Crosstalk (separation between channels) | >80dB |
| Power Supply Voltage | 9 ~ 16VDC |
| Input Channels | 02 |
| output channels | 06 |
| Routing | A,B,A+B |
| General gain | 80 ~ 0dB |
| Output gain | 24 ~ +6dB |
| crossover | HPF (Variable): Variable Filters LPF (Variable): Variable Filters |
| Alignment | 5.7 mS - 76.38" (194cm) |
| Phase | 0 / 180º |
| Threshold | 24 ~ 0dB |
| attack | 1ms ~ 900ms |
| Release | 1ms ~ 4000ms |
| Parametric equalizer (3 bands) per output | Central Frequency: 20Hz ~ 20KHz Attenuation - Gain: -12dB ~ +12dB Q Factor: 0.4 ~ 10 |
| Frequency range | 20 Hz ~ 20 kHz |
| Gain | -60 ~ 0dB |
| Languages | Portuguese - English - Spanish |
| Memory Positions | 3 + factory default |
| Dimensions (WxHxD) | 8.27" x 1.7" x 4.80" (210 x 43 x 122 mm) |
| Weight | 1.21 lbs (0.550 kg) |
| EAN | 7898556844093 |
| Additional Information | |
| Limiter Adjustable Output mirroring function Individual MUTE Function on outputs Audio Generator |
|
Aditional Information:
Limiter AdjustableOutput mirroring function
Individual MUTE Function on outputs
Audio Generator
