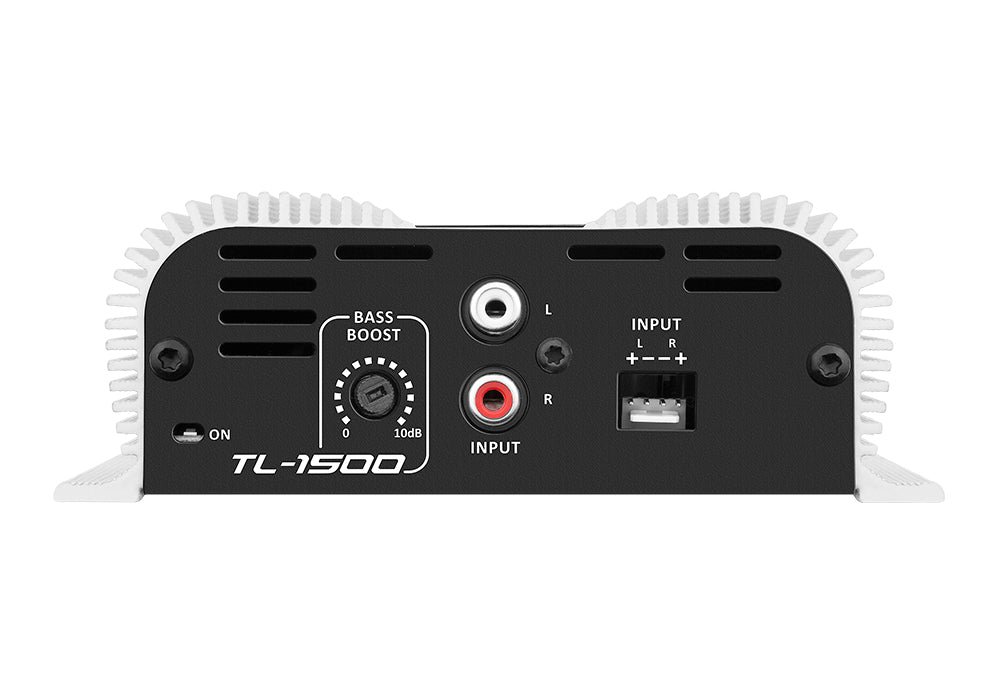

The TL 1500 amplifier from Taramps is intended for 3-channel car audio systems, and its features follow below:
- 2 stereo channels (L/R) at 95 Watts RMS, at 2 ohms each, with an active cutoff filter (HPF) at 90Hz to connect the door and trunk cover speakers.
- 1 SUB channel with 200 Watts RMS at 4 ohms, for subwoofer speakers. This channel is the result of the sum of the channels (L/R) with active cutoff filter (LPF) at 90Hz.
It is a stereo amplifier, with a total power of 390 Watts RMS, FULL RANGE, playing all frequencies just the way you like.
Technical Information:
| Operation class | Class D |
|---|---|
| Number of Channels | 03 |
| Maximum power | @ 13.8 VDC - 2 OHMS 2 x 95W RMS (STEREO) @ 13.8 VDC - 4 OHMS 1 x 200W RMS (SUB) |
| Input Sensitivity | Input RCA = 320mV Wire Input = 6V |
| Signal to Noise Ratio | >90dB |
| Frequency Response | Sub Output: 15Hz to 90Hz and its active frequency cut (12dB/8ª) Stereo Output L/R: 90Hz to 30kHz and its active frequency cut (12dB/8ª) |
| bass boost | 0 to 10dB @ 50Hz - Adjustable |
| Efficiency | 90% |
| Input Impedance | 10K OHMS (RCA) 1K OHMS (WIRE) |
| protection system | Thermal and Output Short |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 0.75A |
| Maximum music consumption | 17.5A |
| Maximum consumption in sinusoidal signal | 35A |
| Dimensions (WxHxD) | 5.43" x 1.93" x 4.76" (138 x 49 x 121mm) |
| Weight | 1.32lb (0,60kg) |
| EAN | 7898556844772 |
